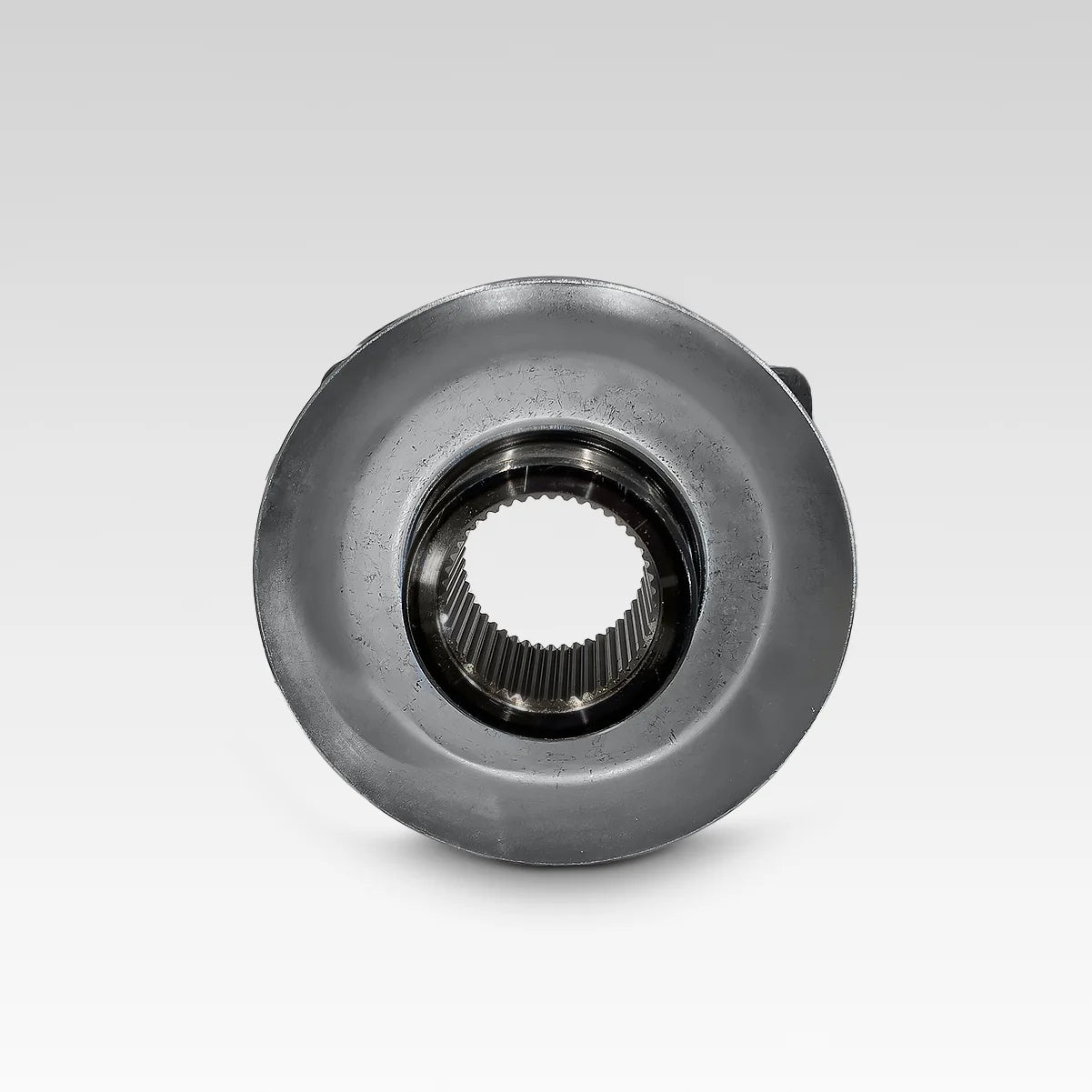

NEPN250-4-351-1X, SPL250 Series End Yoke – Heavy-Duty Driveshaft Component for Optimal Performance

Part Number: NEPN250-4-351-1X

Series: SPL250

U-Joint Cap Diameter (A): 2.362 inches (60 mm)

U-Joint Width (B): 6.417 inches (163 mm)

Centerline to End of Spline (C): 5.310 inches (134.87 mm)

Hub Diameter (D): 3.250 inches (82.55 mm)

Spline Diameter (E): 2.390 inches (60.71 mm)

Number of Splines (F): 46

Bore Length (G): 2.310 inches (58.67 mm)

Joint Angle: 25 degrees

Material: High-strength steel

Application: Heavy-duty vehicle driveshafts

Manufacturer: Neapco

Spicer: 250-4-351-1X

Neapco: N250-4-351-1X

Automann: NEPN250-4-351-1X

PowerTrain Industries: 250-4-351-1X

Make: Freightliner

Models:

- Cascadia (2008 - Present)

- Columbia (2004 - 2010)

- Century Class (1996 - 2010)

- Coronado (2001 - Present)

- FLD Series (1987 - 2001)



Make: Kenworth

Models:

- T680 (2013 - Present)

- T800 (1987 - Present)

- W900 (1961 - Present)

- T600 (1984 - 2007)

- T700 (2011 - 2015)



Make: Peterbilt

Models:

- 379 (1987 - 2007)

- 389 (2006 - Present)

- 386 (2006 - 2015)

- 587 (2010 - 2018)

- 579 (2012 - Present)



Make: International

Models:

- ProStar (2006 - 2017)

- LT Series (2017 - Present)

- 9400i (2000 - 2010)

- 9900i (1999 - 2017)

- TranStar (2002 - 2017)



Make: Volvo

Models:

- VNL (1996 - Present)

- VNM (1996 - 2018)

- VNR (2017 - Present)

- VT (2006 - 2010)



Make: Mack

Models:

- Pinnacle (2006 - Present)

- Granite (2001 - Present)

- Vision (2002 - 2016)

- CH Series (1988 - 2007)

- CXU Series (2007 - Present)
