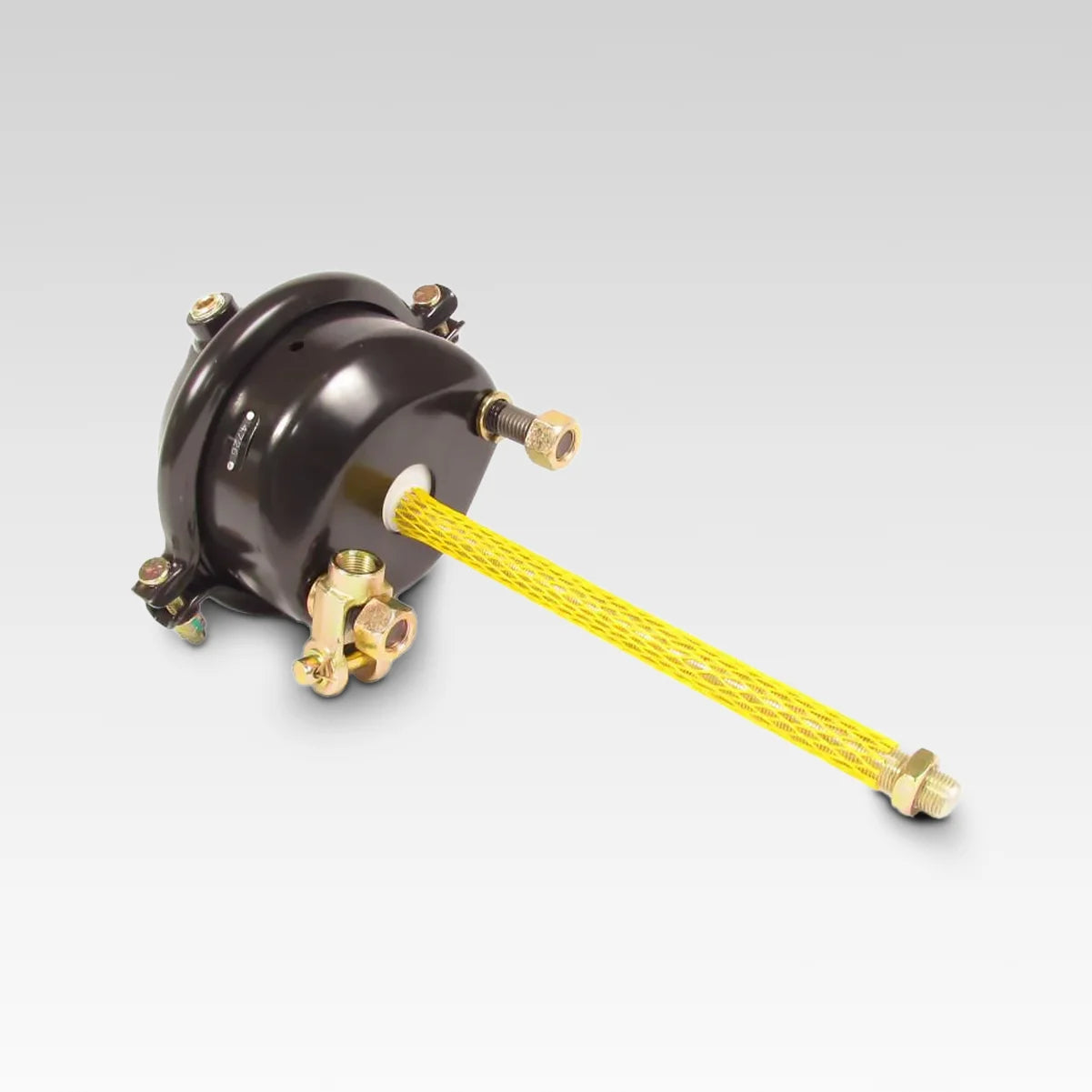

F224726 Brake Chamber Type 20 – Service Chamber for S-Cam Drum Brakes

FORTPRO USA

F224726 Brake Chamber Type 20 – Reliable Service Chamber for Commercial Vehicles | Replaces 288803, HSC-0220-100

Name: F224726 Brake Chamber Type 20 – Reliable Service Chamber for Commercial Vehicles | Replaces 288803, HSC-0220-100
Brand: FORTPRO USA
SKU: F224726
Price: 33.00 USD
Availability: InStock

F224726

$33.00 USD

Shipping calculated at checkout.

Description

The F224726 Brake Chamber Type 20 efficiently converts air pressure into mechanical force to engage drum brakes in commercial vehicles. Built for durability and performance, it ensures a reliable braking system with high resistance to wear and corrosion.

Compatible

Product variants

In stock, ready to ship

Pickup available at 3520 South Dixie Boulevard

Usually ready in 1 hour

Pairs well with

F224726 Brake Chamber Type 20 – Reliable Service Chamber for Commercial Vehicles | Replaces 288803, HSC-0220-100

$33.00 USD

Product details

Specification

Part: Service Chamber Assembly

Chamber Type: Brake Chamber

Air Port Position: 90°

Clevis: Threaded

Diaphragm Type: Single

Finish: Powder Coated

Model: Type 20

Outside Diameter: 7"

Push Rod Length: 10.20"

Stroke Type: Standard

Stroke Length: 2 1/4"

Stud Distance: 4 3/4"

Thread Diameter: 5/8"-18 UNF

Notes: Brake service chamber for S-Cam brakes

Cross References

Automann: 179.SC20

Bendix: 288803

Euclid: E-20S, E-BC20S

Flagg: 20S

Haldex: SC20, KN36200

Meritor: R870020

Velvac: 30017

Manufacture Standards: Manufactured under ISO/TS 16949:2009 standards, ensuring quality and performance.

Passed Tests: Salt spray test, Leak tightness test, Endurance test.
